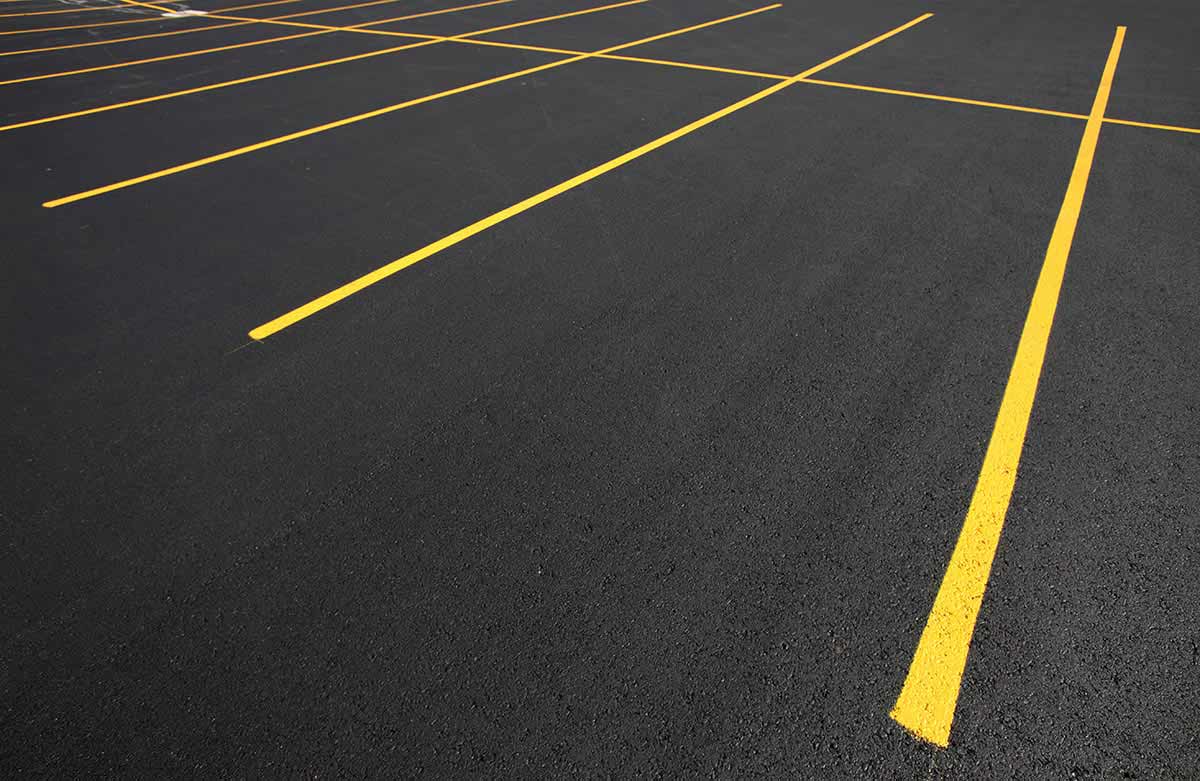

Line Striping in Central Ohio
Clear, visible pavement markings are essential for safe traffic flow, legal compliance, and the professional appearance of any parking lot or commercial property. Faded or missing striping creates confusion, wastes parking capacity, and exposes property owners to ADA violations and liability claims. All State Paving has been providing professional line striping and pavement marking services across Central Ohio since 1979, delivering crisp, durable markings that keep lots organized and compliant.
Line striping is more than just painting lines on pavement. A well-designed parking lot layout maximizes the number of spaces within the available area, establishes clear traffic flow patterns, meets ADA accessibility requirements, and designates fire lanes, loading zones, and pedestrian crosswalks. Every element has specific dimensional requirements set by local codes and federal accessibility standards. Getting these details right protects property owners from violations and keeps everyone who uses the lot safe.
We use commercial-grade traffic paint and thermoplastic materials applied with professional striping equipment for straight, consistent lines and sharp markings. Our layout work begins with precise measurement and chalk lines before any paint is applied. We handle everything from simple re-striping of existing layouts to complete new lot designs including stall dimensions, drive lane widths, ADA spaces with proper signage, and specialty markings like directional arrows, crosswalks, and no-parking zones.
Why Choose Our Line Striping Services?
ADA Compliance and Legal Protection
Federal ADA requirements specify the number, size, location, and signage for accessible parking spaces. Non-compliance carries fines of up to $75,000 for a first violation and $150,000 for subsequent violations. We ensure every lot we stripe meets current ADA standards, protecting you from costly enforcement actions.
Maximized Parking Capacity
A professionally designed lot layout can increase parking capacity by 10 to 20 percent compared to a poorly planned design. We calculate optimal stall dimensions, angled versus perpendicular parking, and one-way versus two-way traffic flow to get the most spaces out of your available area without sacrificing safety.
Improved Traffic Safety and Flow
Clear directional arrows, stop bars, crosswalks, and lane markings reduce confusion and accidents in your lot. Drivers can see exactly where to go, where to park, and where pedestrians cross. This is especially important for high-traffic retail locations and medical facilities where visitors may be unfamiliar with the layout.
Professional Appearance
Fresh, crisp striping is one of the most visible improvements you can make to a commercial property. It immediately signals that the property is well-maintained and professionally managed. Faded, crooked, or missing lines create the opposite impression and can deter customers from entering your business.
Durable Materials That Last
We use commercial-grade traffic paint and thermoplastic materials that withstand heavy traffic, Ohio weather, and snow plow contact. Our markings maintain visibility significantly longer than consumer-grade products. For high-wear areas, we recommend thermoplastic markings that can last 3 to 5 times longer than standard paint.
Our Line Striping Process
Lot Survey and Layout Design
We measure your lot, evaluate the existing layout, and discuss any changes you want to make. If it is a new lot or a redesign, we calculate the optimal layout for maximum parking capacity while meeting all code requirements for stall size, drive lane width, ADA spaces, and fire lanes.
Surface Preparation
We clean the pavement surface to remove dirt, debris, and loose material that would prevent proper paint adhesion. If the lot has been recently sealcoated, we verify that the sealcoat has fully cured before striping. Old, faded markings are evaluated and either re-striped in place or adjusted as part of a new layout.
Precision Layout and Chalk Lines
Every line, stall, arrow, and marking is measured and laid out with chalk lines before any paint is applied. This ensures straight lines, consistent spacing, and accurate dimensions across the entire lot. We verify ADA space placement, signage locations, and fire lane dimensions against current code requirements.
Professional Striping Application
We apply markings using commercial striping machines that deliver consistent line width and paint thickness. Stencils are used for handicap symbols, arrows, letters, and specialty markings. We work efficiently to minimize lot closure time and typically complete most lots in a single day.
Signage Installation and Final Inspection
We install ADA signage, fire lane signs, and any other required markers. A final inspection confirms that every marking meets dimensional standards and is clearly visible. We provide a lot diagram showing the completed layout for your property management records.
Line Striping FAQ
How often does parking lot striping need to be redone?
Standard traffic paint in a typical Central Ohio parking lot lasts approximately 12 to 18 months before it begins to fade noticeably from UV exposure, vehicle tire wear, snow plow contact, and road salt application during winter months. High-traffic retail and medical office lots may need re-striping annually to maintain clear visibility and professional appearance. Thermoplastic markings, which bond directly to the pavement surface, last significantly longer at typically 3 to 5 years even in high-traffic areas. All State Paving recommends inspecting your parking lot markings each spring after the snow season ends, when fading and damage from winter maintenance are most apparent, and scheduling re-striping before the markings deteriorate to the point where drivers cannot clearly see stall lines, directional arrows, or ADA designations. Faded markings create confusion, reduce parking efficiency, and can expose you to ADA compliance violations. With over 40 years of experience serving Central Ohio commercial properties, our team can assess your markings and recommend the right schedule and material choice. Contact us for a free lot inspection.
How many ADA-accessible spaces does my lot need?
The number of required ADA-accessible parking spaces is determined by federal law based on your total parking lot capacity. A lot with 1 to 25 total spaces needs at least 1 accessible space, 26 to 50 spaces requires 2 accessible spaces, and the requirement scales up from there with roughly 1 accessible space for every 25 standard spaces up to certain thresholds defined in the ADA Standards for Accessible Design. At least one accessible space in every lot must be van-accessible, measuring 8 feet wide with an adjacent 8-foot access aisle, and all accessible spaces must have proper signage mounted at specific heights. Non-compliance carries federal fines of up to 75,000 dollars for a first violation and 150,000 dollars for repeat violations. All State Paving calculates the exact ADA requirement for every Central Ohio parking lot we stripe and ensures full compliance with current federal and local standards. Our team has been handling ADA-compliant lot layouts across the region for over 40 years. Contact us for a free compliance review of your existing lot.
Can you change my lot layout to add more spaces?
Yes. All State Paving frequently redesigns parking lot layouts for Central Ohio businesses to increase capacity and improve traffic flow using the existing pavement footprint. Common improvements that add spaces without any new construction include switching from 90-degree perpendicular parking to 60-degree angled parking in certain areas, converting two-way drive lanes to one-way traffic flow where circulation patterns allow it, reconfiguring underused landscape islands, and repositioning ADA spaces to optimize the surrounding standard stall layout. A professional layout redesign combined with fresh striping can increase your available parking count by 10 to 20 percent without pouring a single square foot of new asphalt, making it one of the most cost-effective improvements a property owner can make. Our team uses precise measurements and code-compliant stall dimensions to maximize every square foot of your lot while maintaining safe traffic circulation and full ADA compliance. With over 40 years of parking lot design experience across Central Ohio, we know how to find hidden capacity. Contact us for a free lot evaluation and redesign consultation.
What is the difference between traffic paint and thermoplastic?
Traffic paint is a liquid coating applied with professional striping equipment that dries to form a visible marking on the pavement surface. It is the standard choice for most Central Ohio parking lots because it costs less upfront, typically in the range of a few cents per linear foot, and delivers clean, sharp results that last 12 to 18 months under normal traffic conditions. Thermoplastic is a heated solid material applied at approximately 400 degrees Fahrenheit that bonds directly to the pavement surface and creates a thicker, more durable marking that is also retroreflective for better nighttime visibility. Thermoplastic costs more per application but lasts 3 to 5 times longer than standard traffic paint, making it significantly more cost-effective over time for high-wear areas like drive lanes, crosswalks, stop bars, and directional arrows. All State Paving helps Central Ohio property owners choose the right material for each application based on traffic volume and budget. Our team has over 40 years of striping experience. Contact us for a free consultation and we will recommend the best option for your lot.
Ready to Get Started?
Call us today for a free estimate on your line striping project.
